N Engl J Med 2014; 370:744-751February 20, 2014DOI: 10.1056/NEJMra1302901
Chest auscultation has long been considered a useful part of the physical examination, going back to the time of Hippocrates. However, it did not become a widespread practice until the invention of the stethoscope by René Laënnec in 1816, which made the practice convenient and hygienic.1 During the second half of the 20th century, technological advances in ultrasonography, radiographic computed tomography (CT), and magnetic resonance imaging shifted interest from lung auscultation to imaging studies, which can detect lung disease with an accuracy never previously imagined. However, modern computer-assisted techniques have also allowed precise recording and analysis of lung sounds, prompting the correlation of acoustic indexes with measures of lung mechanics. This innovative, though still little used, approach has improved our knowledge of acoustic mechanisms and increased the clinical usefulness of auscultation. In this review, we present an overview of lung auscultation in the light of modern concepts of lung acoustics.
NOMENCLATURE
The traditional nomenclature for lung sounds suffers from imprecision. Therefore, in this article, we have adopted the terminology proposed by the ad hoc committee of the International Lung Sounds Association.2 In this classification of lung sounds, the term “rale” is replaced by “crackle,” since the adjectives often used to qualify rales (e.g., “moist” or “dry”) can be misleading with regard to the means by which rales (or crackles) are produced. “Crackle” can be defined acoustically and does not suggest any means or site of generation. The clinical characteristics of normal and adventitious sounds are summarized in Table 1
TABLE 1
Clinical Characteristics and Correlations of Respiratory Sounds.

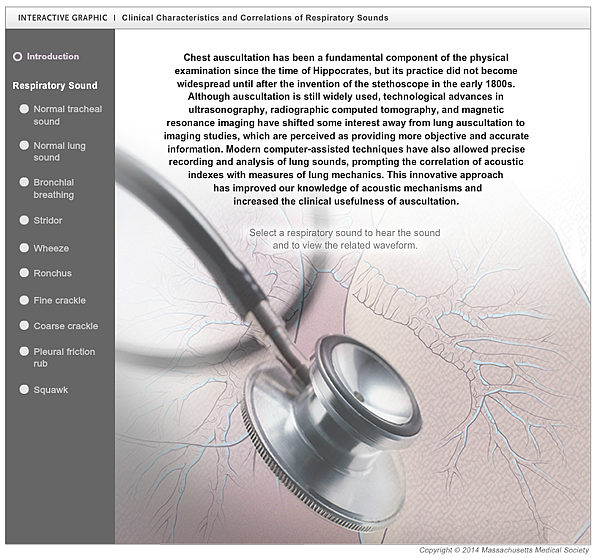

, and the lung sounds can be heard in an interactive graphic, available with the full text of this article at NEJM.org.
NORMAL RESPIRATORY SOUNDS
Tracheal Sounds

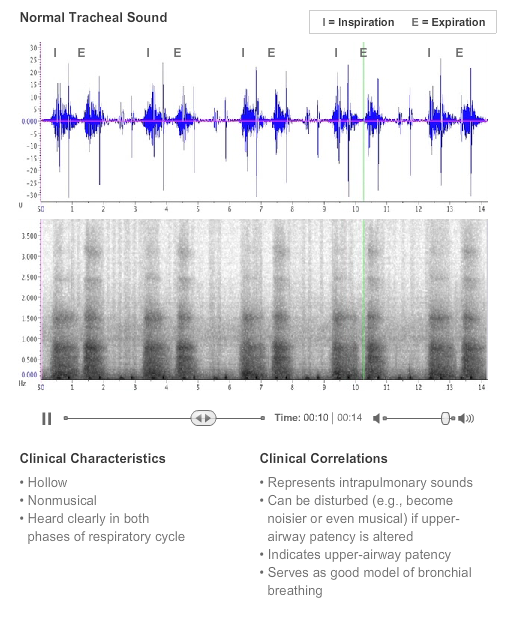

Tracheal auscultation is not frequently performed, but in certain situations it can convey important clinical information. When heard at the suprasternal notch or the lateral neck, normal tracheal sounds characteristically contain a large amount of sound energy and are easily heard during the two phases of the respiratory cycle (Figure 1A

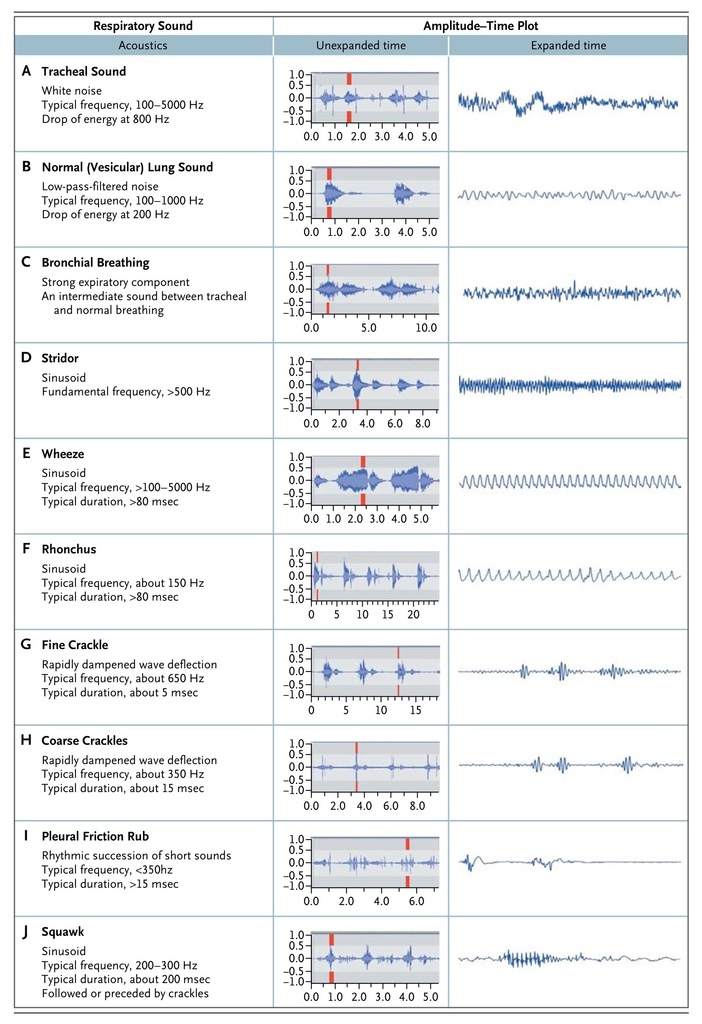

FIGURE 1
Acoustics and Waveforms of Lung Sounds.
). The frequencies of these sounds range from 100 Hz to almost 5000 Hz, with a sharp drop in power at a frequency of approximately 800 Hz and little energy beyond 1500 Hz.4 They are produced by turbulent airflow in the pharynx, glottis, and subglottic region.
Listening to tracheal sounds can be useful in a variety of circumstances. First, the trachea carries sound from within the lungs, allowing auscultation of other sounds without filtering from the chest cage. Second, the characteristics of tracheal sounds are similar in quality to the abnormal bronchial breathing heard in patients with lung consolidation. Third, in patients with upper-airway obstruction, tracheal sounds can become frankly musical, characterized as either a typical stridor or a localized, intense wheeze. Recognizing this “tracheal wheeze” is clinically important because when auscultated over the lung, it is often mistakenly taken for the wheeze of asthma (as discussed in more detail below). Finally, monitoring tracheal sounds is a noninvasive means of monitoring patients for the sleep apnea syndrome, although for practical reasons such monitoring cannot be performed by means of auscultation with a stethoscope.5 Whereas the stridorous breathing of a child with croup is easily recognized, stridor in adults, when caused by bronchial or tracheal stenosis or by a tumor in the central airway, is more subtle. It may be missed when only the lungs are examined but is obvious when heard over the trachea or larynx.6
Lung, or “Vesicular,” Sounds

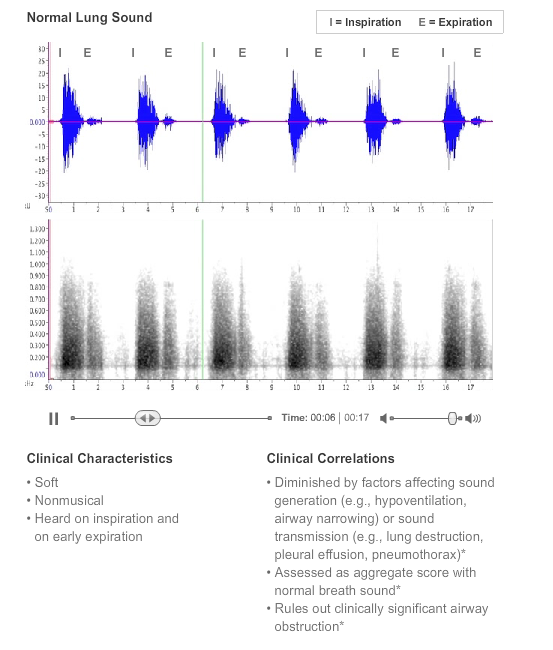

The sound of normal breathing heard over the surface of the chest is markedly influenced by the anatomical structures between the site of sound generation and the site of auscultation. Characteristically, normal lung sounds are heard clearly during inspiration but only in the early phase of expiration (Figure 1B). In sound analysis, the frequency range of normal lung sounds appears to be narrower than that of tracheal sounds, extending from below 100 Hz to 1000 Hz, with a sharp drop at approximately 100 to 200 Hz.7 The idea that “vesicular” sound is produced by air entering the alveoli (“vesicles”) is incorrect. Indeed, modern concepts of physiology indicate that in the lung periphery gas molecules migrate by means of diffusion from parts of the lung reached through bulk flow, a silent process. Most important, studies support the idea of a double origin, with the inspiratory component generated within the lobar and segmental airways and the expiratory component coming from more central sources.8,9
Several mechanisms of vesicular sounds have been suggested, including turbulent flow, vortexes, and other, hitherto unknown mechanisms.10-12 Clinically, a decrease in sound intensity is the most common abnormality. Mechanistically, this loss of intensity can be due to a decrease in the amount of sound energy at the site of generation, impaired transmission, or both.3 Sound generation can be decreased when there is a drop in inspiratory airflow, which can result from several conditions, ranging from poor cooperation (e.g., a patient's unwillingness to take a deep breath) to depression of the central nervous system (e.g., drug overdose). Airway conditions include blockage (e.g., by a foreign body or tumor) and the narrowing that occurs in obstructive airway diseases (e.g., asthma and chronic obstructive pulmonary disease [COPD]). The decrease in the intensity of breath sounds may be permanent, as in cases of pure emphysema, or reversible, as in asthma (e.g., during a bronchial provocation test13 or an asthma attack).
Sound transmission can be impaired by intrapulmonary or extrapulmonary factors. The latter include conditions such as obesity, chest deformities (e.g., kyphoscoliosis), and abdominal distention due to ascites. Intrapulmonary factors, which can be harder to recognize, include disruption of the mechanical properties of the lung parenchyma (e.g., a combination of hyperdistention and parenchymal destruction in emphysema) or the interposition of a medium between the source of sound generation and the stethoscope that has a different acoustic impedance from that of the normal parenchyma (e.g., collections of gas or liquid in the pleural space — pneumothorax, hemothorax, and intrapulmonary masses). Incidentally, the development of lung consolidation, which occurs in pneumonia, results in decreased breath sounds only if the embedded airways are blocked by inflammation or viscous secretions. If instead the airways are patent, sound transmission is actually improved, increasing the expiratory component; this effect is characterized as “bronchial breathing” (Figure 1C), which corresponds to the air bronchogram on chest radiographs.
ABNORMAL RESPIRATORY SOUNDS
Musical Sounds
Stridor

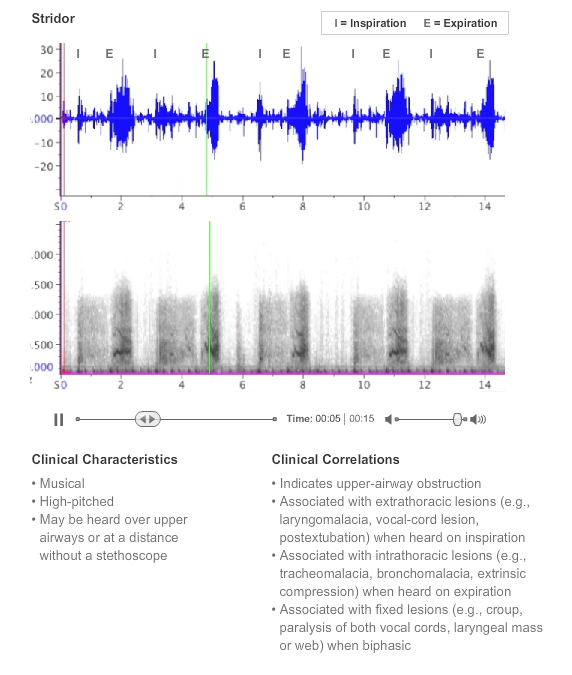

Stridor is a high-pitched, musical sound produced as turbulent flow passes through a narrowed segment of the upper respiratory tract.14 It is often intense, being clearly heard without the aid of a stethoscope. In sound analysis it is characterized by regular, sinusoidal oscillations with a fundamental frequency of approximately 500 Hz, often accompanied by several harmonics (Figure 1D). Evaluating stridor is especially useful in patients in the intensive care unit who have undergone extubation, when its appearance can be a sign of extrathoracic airway obstruction requiring prompt intervention. In cases of such obstruction, stridor can be distinguished from wheeze because it is more clearly heard on inspiration than on expiration and is more prominent over the neck than over the chest.14 Although stridor is usually inspiratory, it can also be expiratory or biphasic. Other causes of stridor in adults include acute epiglottitis, airway edema after device removal, anaphylaxis, vocal-cord dysfunction, inhalation of a foreign body, laryngeal tumors, thyroiditis, and tracheal carcinoma.
The stridorous sound of vocal-cord dysfunction deserves special mention because it is often confused with asthma and is responsible for numerous visits to the emergency department and hospitalizations. (Vocal-cord dysfunction, also called paradoxical vocal-cord motion, is a respiratory condition characterized by the inappropriate adduction of the vocal cord with resultant airflow limitation at the level of the larynx, accompanied by stridorous breathing.) In a review of 95 patients with vocal-cord dysfunction who were treated at the National Jewish Center, more than half carried an incorrect diagnosis of asthma for years and most had been treated with substantial doses of glucocorticoids. These patients also had an average of six hospitalizations yearly, and 28% had been intubated.15 In addition, several reports have documented the costs of misdiagnosed vocal-cord dysfunction to the medical care system.16
Wheeze
The wheeze is probably the most easily recognized adventitious sound.17 Its long duration, typically more than 100 msec, allows its musical quality to be discerned by the human ear. In sound analysis the wheeze appears as sinusoidal oscillations with sound energy in the range of 100 to 1000 Hz and with harmonics that exceed 1000 Hz on occasion (Figure 1E).18 It is probably incorrect to credit high-pitched wheezes to the narrowing of peripheral airways and low-pitched wheezes to the narrowing of central airways. Purportedly, wheezes are formed in the branches between the second and seventh generations of the airway tree by the coupled oscillation of gas and airway walls that have been narrowed to the point of apposition by a variety of mechanical forces.18 In addition, the model incorporates two principles: first, that although wheezes are always associated with airflow limitation, airflow can be limited in the absence of wheezes, and second, that the pitch of an individual wheeze is determined not by the diameter of the airway but by the thickness of the airway wall, bending stiffness, and longitudinal tension. 18
Wheezes can be inspiratory, expiratory, or biphasic. Although typically present in obstructive airway diseases, especially asthma, they are not pathognomonic of any particular disease. In asthma and COPD, wheezes can be heard all over the chest, making their number difficult to estimate. Localized wheeze is often related to a local phenomenon, usually an obstruction by a foreign body, mucous plug, or tumor. Failure to recognize this type of wheeze can have serious consequences for patients, who often receive a misdiagnosis of “difficult-to-treat asthma”19 and are not referred to appropriate specialists for months or even years after the initial evaluation. Wheezes may be absent in patients with severe airway obstruction. In fact, the model cited above predicts that the more severe the obstruction, the lower the likelihood of wheeze. The typical example is a severe asthma attack, a condition in which the low respiratory flows cannot provide the energy necessary to generate wheezes (or any sounds). As a consequence, the accompanying normal breath sound is also severely reduced or even absent, creating a clinical picture known as “silent lung.” As the obstruction is relieved and airflow increases, both the wheeze and normal breath sounds reappear.

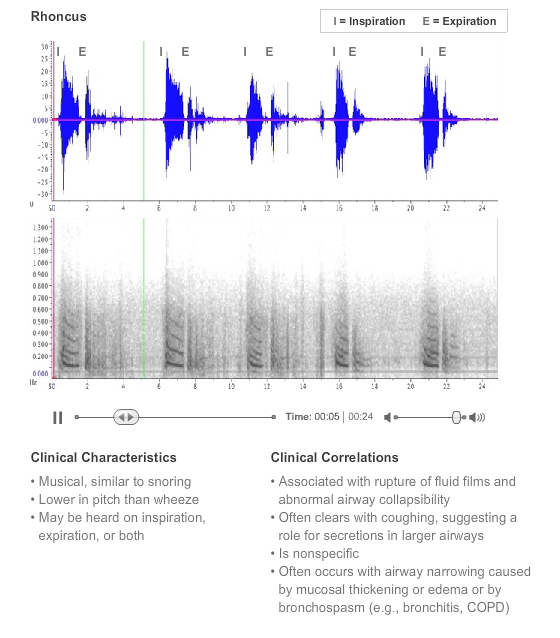

Finally, a word must be said about the rhonchus. This sound is considered to be a variant of the wheeze, differing from the wheeze in its lower pitch — typically near 150 Hz — which is responsible for its resemblance to the sound of snoring on auscultation (Figure 1F).17 The rhonchus and the wheeze probably share the same mechanism of generation, but the rhonchus, unlike the wheeze, may disappear after coughing, which suggests that secretions play a role. Although many physicians still use the term rhonchus, some prefer to refer to the characteristic musical sounds simply as high-pitched or low-pitched wheezes.
Nonmusical Sounds
Crackles

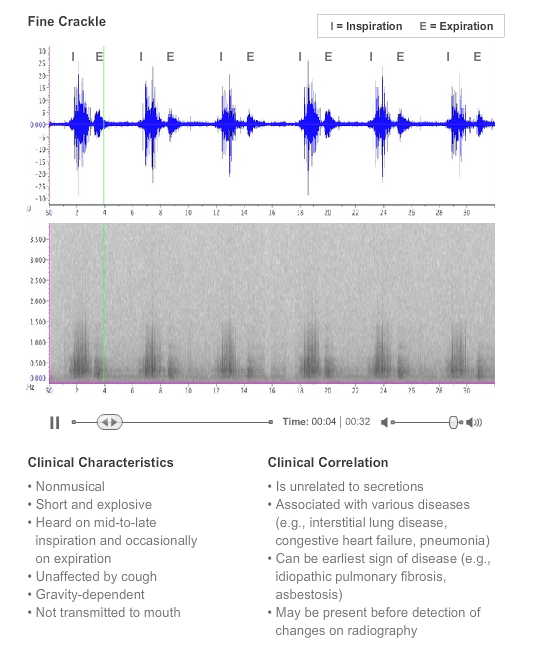

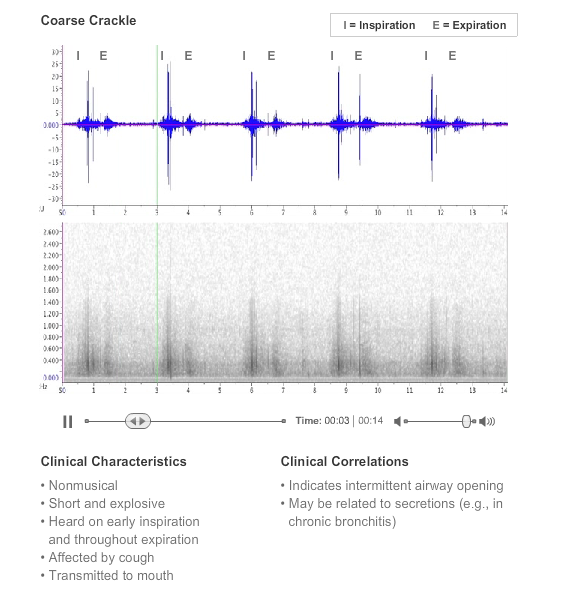

Crackles are short, explosive, nonmusical sounds heard on inspiration and sometimes during expiration.17 Two categories of crackles have been described: fine crackles and coarse crackles. On auscultation, fine crackles are usually heard during mid-to-late inspiration, are well perceived in dependent lung regions, and are not transmitted to the mouth. Uninfluenced by cough, fine crackles are altered by gravity, changing or disappearing with changes in body position (e.g., bending forward). Coarse crackles tend to appear early during inspiration and throughout expiration and have a “popping” quality. They may be heard over any lung region, are usually transmitted to the mouth, can change or disappear with coughing, and are not influenced by changes in body position. In sound analysis, crackles appear as rapidly dampened wave deflections with a repetitive pattern (Figure 1G and 1H). As compared with coarse crackles, fine crackles have a shorter duration (5 msec vs. 15 msec) and higher frequency (650 Hz vs. 350 Hz).20 The most likely mechanism for the generation of fine crackles is the sudden inspiratory opening of small airways held closed by surface forces during the previous expiration.21 Coarse crackles are probably produced by boluses of gas passing through airways as they open and close intermittently.17 With the exception of the crackling sounds heard in moribund patients or in patients with abundant secretions, crackles are probably not produced by secretions.
Evaluation for crackles is important because it can help with the differential diagnosis. Because fine crackles have a distinctive sound that is similar to the sound heard when joined strips of Velcro are gently separated, they have been called Velcro rales. Typically, fine crackles are prominent in idiopathic pulmonary fibrosis, appearing first in the basal areas of the lungs and progressing to the upper zones with disease progression.22 However, fine crackles are not pathognomonic of idiopathic pulmonary fibrosis; they are also found in other interstitial diseases, such as asbestosis, nonspecific interstitial pneumonitis, and interstitial fibrosis associated with connective-tissue disorders. Notably, fine crackles tend to be minimal or even absent in sarcoidosis, probably because sarcoidosis primarily affects the central lung zones not abutting the pleura. Among patients with similar levels of scarring on chest films, those with few crackles are more likely to have sarcoidosis, whereas those who have many crackles are more likely to have idiopathic pulmonary fibrosis. Advanced computerized acoustic analysis, which involves the use of a multichannel sound-detection device, has made it possible to diagnose idiopathic pulmonary fibrosis and congestive heart failure, in addition to other cardiopulmonary disorders, with good sensitivity and specificity.23
In idiopathic pulmonary fibrosis and asbestosis, fine crackles can be discerned before radiologic abnormalities are detected and are thus considered to be an early sign of pulmonary impairment.24,25 Although the presence of Velcro rales as heard on auscultation has not been formally accepted as diagnostic of idiopathic pulmonary fibrosis, auscultation is considered to be the only realistic means of detection early in the course of the disease.22 In asbestosis, the use of computerized detection of crackles has appeared to be as accurate as CT in locating disease that is not radiologically apparent.25 In a study of 386 workers exposed to asbestos,26 crackle detection by means of auscultation performed by a trained technician correctly identified all the cases of asbestosis, suggesting that auscultation may have a role to play as a noninvasive method of screening in these populations.
Coarse crackles are commonly heard in patients with obstructive lung diseases, including COPD, bronchiectasis, and asthma, usually in association with wheezes. They are also often heard in patients with pneumonia and those with congestive heart failure. In pneumonia, the characteristics of the crackles may vary markedly during the disease: the coarse, midinspiratory crackles heard in the early phase give way to shorter, end-inspiratory crackles in the recovery phase.27 Fine and coarse crackles may also coexist.28 Finally, although crackles can be heard in healthy persons, the crackles tend to disappear after a few deep breaths. The presence of persistent crackles in both lungs in older persons with dyspnea should prompt an investigation for interstitial lung disease.

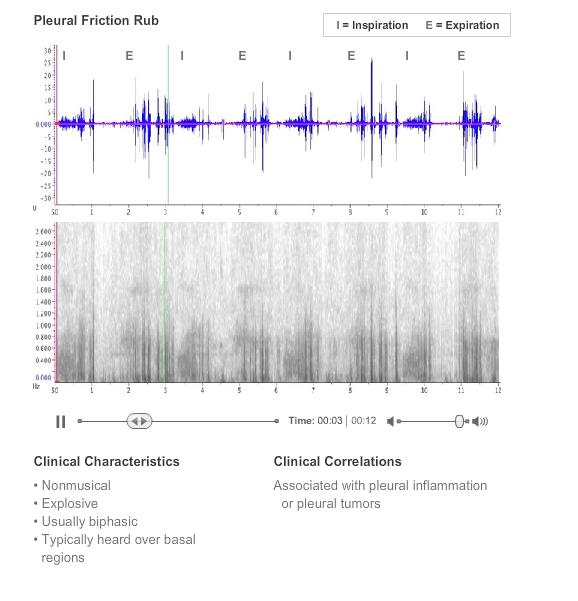

Pleural Friction Rub
In healthy persons, the parietal and visceral pleura slide over each other silently. In persons with various lung diseases, the visceral pleura can become rough enough that its passage over the parietal pleura produces crackling sounds heard as a friction rub. In our experience, this sound is more prominent on auscultation of the basal and axillary regions than on auscultation of the upper regions. One explanation for this difference is the fact that the basal regions lie on the steep portion of the static pressure–volume curve, whereas the upper regions lie on the flat portion of the curve. Thus, for a given change in transpulmonary pressure, the basal regions undergo greater expansion. Typically, the pleural friction rub is biphasic, with the expiratory sequence of sounds mirroring the inspiratory sequence.29 Figure 1I shows individual components of a pleural friction rub. The waveform is similar to that seen with crackles, except for its longer duration and lower frequency. The pleural friction rub is probably produced by the sudden release of tangential energy from a lung surface that is temporarily prevented from sliding because of a frictional force between the two pleural layers.29 Typically, pleural friction rubs are heard in inflammatory diseases (e.g., pleuritis) or malignant pleural diseases (e.g., mesothelioma).
Mixed Sound — The Squawk

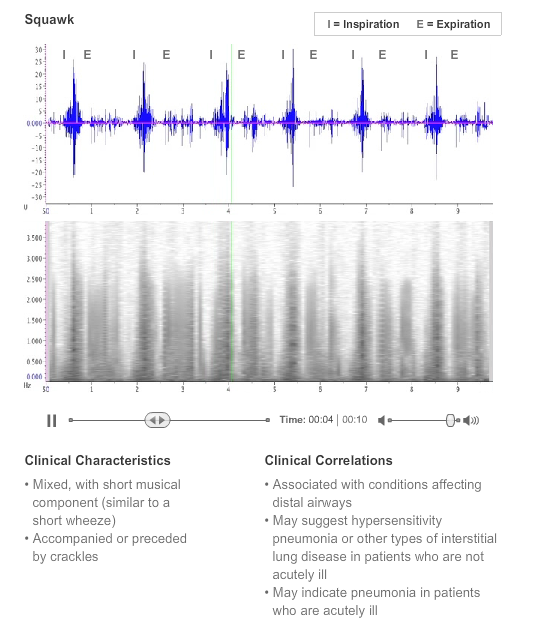

Also called “short wheeze” or “squeak,” the squawk is a mixed sound, containing musical and nonmusical components. Figure 1J shows the sound analysis for a recorded squawk in a patient with hypersensitivity pneumonitis. The short wheeze appears as sinusoidal oscillations that are less than 200 msec in duration, with a fundamental frequency between 200 and 300 Hz. The mechanism underlying the production of squawks is not entirely known, but according to one theory, they are produced by the oscillation of peripheral airways (in deflated lung zones) whose walls remain in apposition long enough to oscillate under the action of the inspiratory airflow.29 Squawks are typically heard from the middle to the end of inspiration in patients with interstitial diseases, especially hypersensitivity pneumonitis.30 However, they are not pathognomonic of this condition, having also been documented in diseases such as bronchiectasis and pneumonia.31 In a patient with squawk and no evidence of interstitial disease, pneumonia should be suspected, because it is the next most likely cause.31
CONCLUSIONS
Lung auscultation remains an essential part of the physical examination. No other clinical procedure matches auscultation for the provision of relevant clinical information about the respiratory system quickly, easily, and by nearly universally available means. Moreover, auscultation requires minimal cooperation on the part of the patient, is cost-effective, and can be repeated as often as necessary. The development of robust acoustic devices for use at the bedside — as exemplified by electronic stethoscopes paired with small convenient recorders, perhaps in the form of a smartphone with an app — may provide the long-awaited portable objective means to record, analyze, and store lung sounds just as any other clinical information is measured and stored. This development will make sound tracking possible, further enhancing the usefulness of auscultation. Finally, it must be kept in mind that auscultation is not a laboratory test but a component of the physical examination whose usefulness depends on its proper correlation with the available clinical information.
